Vacuum Dryer

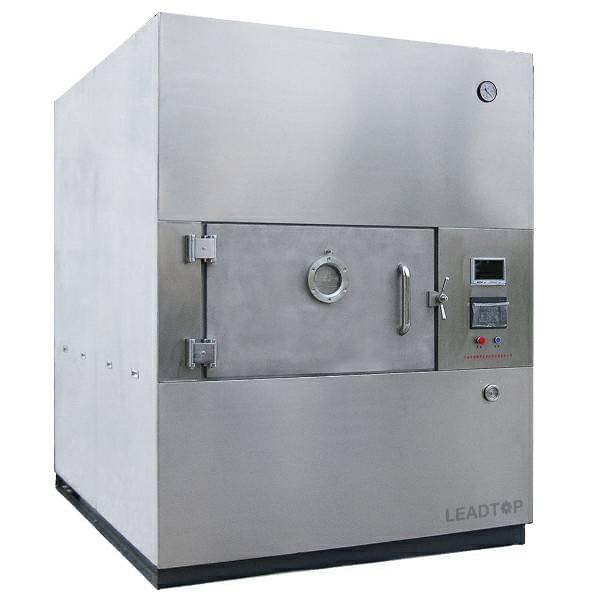

HWZ Series Micro Wave Vacuum Dryer
Usage & Features
Range of usage
Different kinds solid contained liquid. Shallot, carrot cabbage, green and red pepper flakes, caraway, celery, tomato, onion, garlic, ginger, champignon, taro,etc.
Features
1. The equipment adopts advanced PLC control with touch screen operation function
2. the production speed can be adjusted at will without adjusting any other parameters.
3. The first carton feeding system in China. 4. This equipment can be connected with the front-end liquid filling machine, aluminum-plastic packaging machine, pillow packaging machine and other packaging machines, and realize fully automatic work. The back end can be connected to the labeling machine, strapping machine, heat shrinking machine and three-dimensional packaging machine.
We can manufacture the Non-standard equipment according to the requirement of customers!

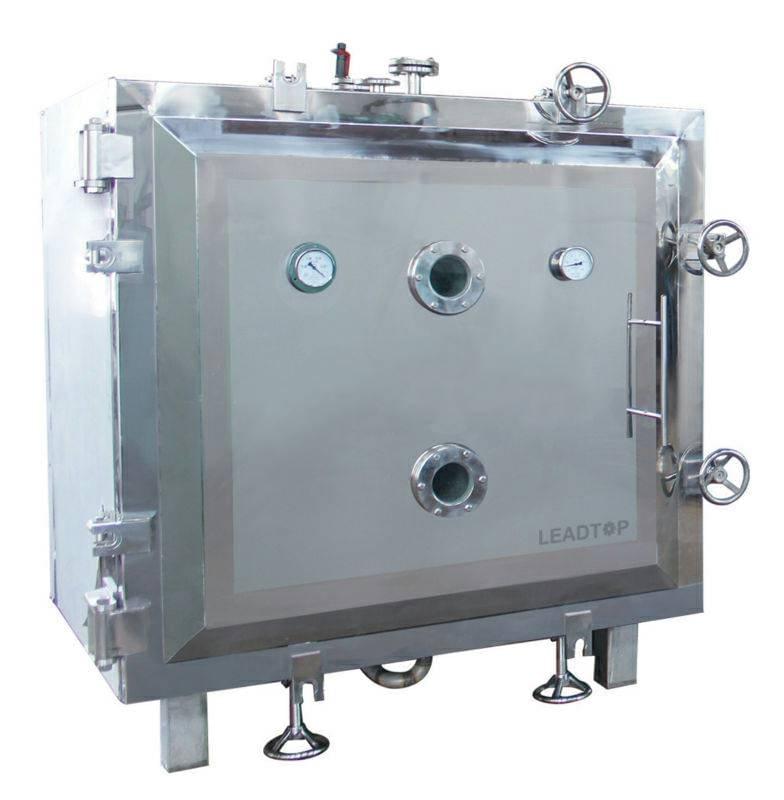

FZG-15 Vacuum Drying Machine
Usage & Principle
Vacuum drying machine for vegetable is divided into static and dynamic, Model YZG round vacuum drier and Model FZG square vacuum drier belongs to static drier.
Range of usage
It is suitable for drying heat sensitive raw materials which often decompose, polymerize or metamorphose under high temperature. It is widely used in the final of pharmaceutical, chemical, foodstuff and electronic industry.
Principle
To heat and dry raw material under the state of vacuum is called vacuum drying. It use vacuum to pump air and humidity out. Making the work-room on the vacuum state. The drying rate increases greatly and energy is saved.
Spray Dryer

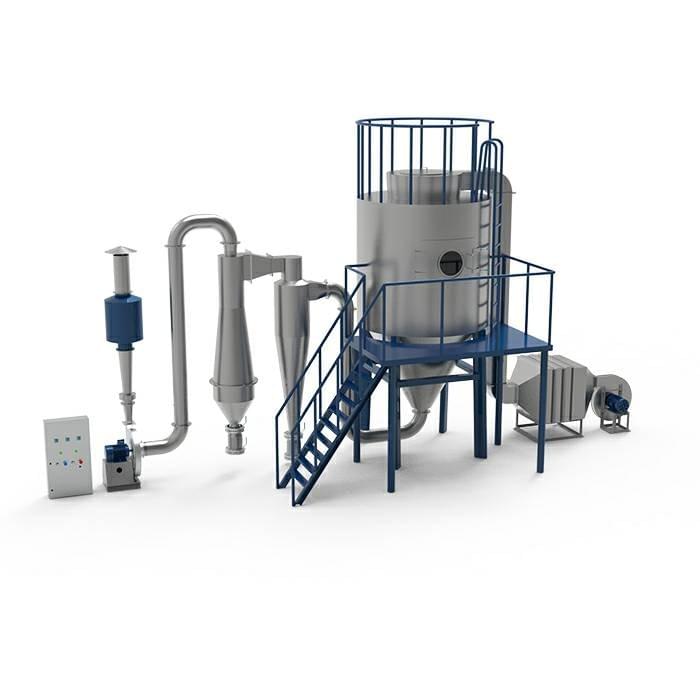

LPG Series Centrifugal Spray Dryer
Usage & Features
Range of usage
Suitable for emulsion, suspend liquid, pastel thing, solution, etc. In the polymer and resin, Fuel, pigment, Pottery, glass, eliminate rust the pharmaceutical, kill the worms, Carbohydrate, dairy products, Detergent and surface activation, Fertilizer, organic compound, inorganic compound material.
Features
1.Rapid drying speed, which just takes 5-15 seconds.
2.Suitable for thermo-sensitive material and keep the origin state.
3.Simple processing and easy operation, which is suitable for continuous production.
4.The product has a good degree of uniformity, liquidity and dissolubility with high quality and purity.
5.Can adjust the product diameter, density and water content in some degree which is convenient to control and manage.
Hot Air Circulation Dryer

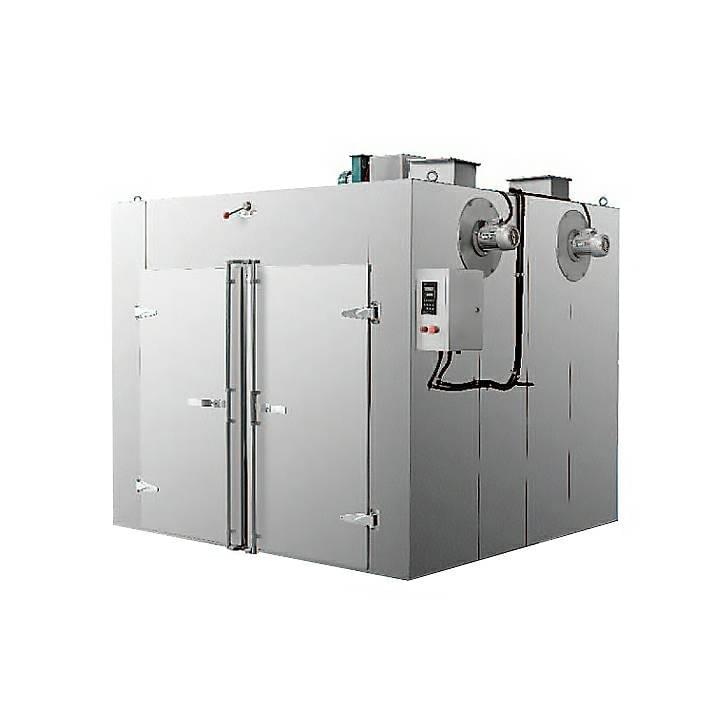

CTC Series Hot Air Circulation Dryer
Usage & Features
Range of usage
CTC Series Hot Air Circulation Dryer is suitable for the material and product hot solidification and dry de-watering in the pharmaceutical, chemical,food, farming, side-product, aquatic product, light industries, heavy industries and others industries. Such as: raw material medicine, crude drug, prepared herbal medicine of Chinese traditional medicine, plaster, powder, particle, drinking agent, pill, packing bottle, pigment, dyestuff, de-watering vegetable, dried fruit piece, sausage, plastics, resin, electric component, baking varnish and etc.
Features
1.The whole machine is in accordance with GMP standard.
2.Service temperature: steam heating 50-150℃; max 150℃; electrical heating 50-350℃.
3.The temperature is automatically controlled, and is recorded by the recorder; 4.Inner wall of oven adopts full welding and arc transition, with no dead angle.The whole machine has favorable sealing performance. 5.The air inlet port is equipped with high efficiency air filter; dehumidification port is equipped with medium efficiency air filter. 6.Components and parts in the oven can be quickly dismantled and installed, which is convenient for cleaning.
Fluid Bed Dryer

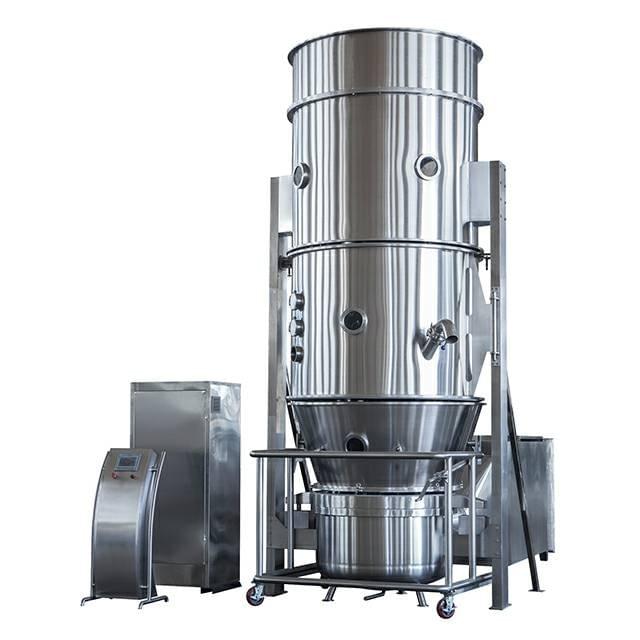

FL Series Boilling spray Granulation Dryer
Usage & Features
Range of usage
1.Drugs granulation and coating.
2.Granulation: Tablet particles, granule particles, capsule particles.
3.Coating: particles, pill covers, color-prepared, slow-release, films, enteric coating
4.Food granulation and coating Granulated sugar, coffee, cacao powder, cream, juice powder, amino acids, sauce, puffed food.
5.Pesticide, paint pigment, dry granulation Powder, granules, block materials.
Features
1.To adopt antistatic filtering mediums, to ensure safe operation.
2.Caking agent atomizer adopts multi-fluid spray gun to maintain uniform spray particles and to increase the rate of qualified products greatly.
3.No dead-corner of equipment; it is easy and rapid of feeding or discharging materials and clean of washing to satisfy the GMP standard.

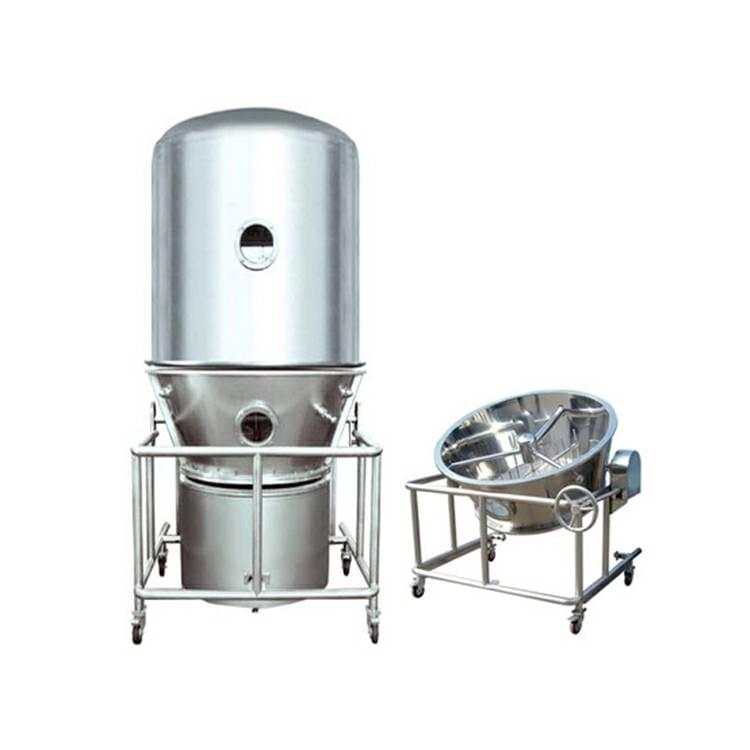

GFG Series High Efficiency Boiling Dryer
Usage & Features
Range of usage
1.Drugs granulation and coating.
2.Granulation: Tablet particles, granule particles, capsule particles.
3.Coating: particles, pill covers, color-prepared, slow-release, films, enteric coating
4.Food granulation and coating Granulated sugar, coffee, cacao powder, cream, juice powder, amino acids, sauce, puffed food.
5.Pesticide, paint pigment, dry granulation Powder, granules, block materials.
Features
1. Overturning discharge of the machine is convenient, quick and complete. Operated at sealed negative pressure and designed by GMP.
2. Inside the bed has installed a mixer, so that to avoid damp materials agglomerating and the channeling during drying.
3. The cloth-bag filter at the top is made of the special antistatic fibers to ensure the safety of the operation.

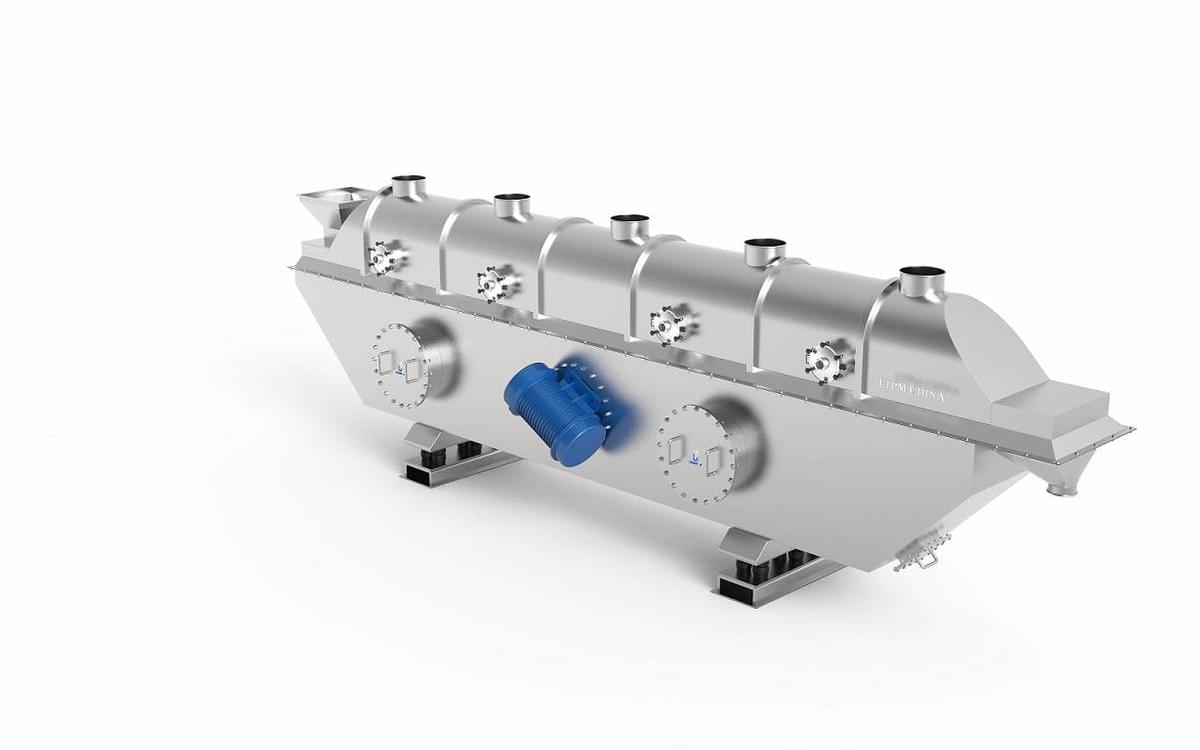

ZLG Series Vibrating Fluid Bed Dryer
Features
1. Bottom bed adopts stainless steel seamless tube for supporting; the structure of bed is stronger and makes the life of equipment longer.
2. Material is heated uniformly, heat exchanging is full and drying intensity is high. Energy can be saved about 30%.
3. Vibration source is vibrating motor. It features constant operation, convenient maintenance, low noise and long life.
4. Fluid state is stable; there is no phenomenon of gap or blowing out.
5. There is less damage to the surface of material. It can be used for drying material that is easy to broken. The work efficiency is not affected even if the granule of material is irregular.

Range of usage
1. Inorganic: borax, boric acid, glass fibers, ammonium hydrogen fluoride, potassium permanganate, sodium perborate, ammonium thiocyanate, sodium thiocyanate, cobalt sulfate, nickel sulfate, zinc sulfate heptahydrate, ammonium chloride, calcium, strontium chloride, sodium chlorate, strontium, copper sulfate pentahydrate, sodium chlorite, sodium sulfite, ammonium nitrate, calcium nitrate, sodium nitrate, potassium bromide, sodium bromide, sodium sulfate, sodium salt.
2. Organics: oxalic acid, succinic acid, hydroquinone, p-nitrobenzoic acid, fumaric acid, resorcinol, catechol, calcium hypochlorite, sodium silicate, GDL, sodium gluconate, thiourea, sorbitol, dicyandiamide, iminodiacetonitrile, itaconic acid.
3. Fertilizer: potassium dihydrogen phosphate, calcium hydrogen phosphate, monoammonium phosphate, ammonium sulfate, magnesium sulfate heptahydrate. 4. Pesticides: Imidacloprid granules, granules glyphosate. 5. Polymer: High-absorbent resin, a polystyrene resin, sodium polyacrylate. 6. Chemicals: washing powder. 7. Chemical additives: methyl cellulose, polyacrylamide, hydroxyethyl cellulose. 8. Food and beverage industry:L-arabinose, acesulfame, erythritol, trehalose, caramel, tartaric acid, coffee, bread crumbs, milk powder, citric acid, potassium citrate, sodium citrate , maltitol, xylose, xylitol, Ru refined, sugar, potassium sorbate, salt, sodium saccharin, monosodium glutamate, sodium iso-VC. 9. Pharmaceutical medical industry:honeysuckle, paracetamol, taurine, vitamin C. 10. Animal husbandry and fishery industry:canola ,seeds.
ABOUT US
Service Center All Over the World！
LTPM CHINA
A Pharma Machinery Division, For A Better Life.
Our company is recognized as a major pharmaceutical equipment manufacturer and a distributor of packaging materials and pharmaceutical chemicals.
Our company is founded in Rui'an, China, with 18 years' (Opened on 1996 year) experience in pharmaceutical industry.
This allows us to expand our business in a well-planned manner.
We now offer a comprehensive whole production line of quality pharmaceutical machines,packing materials and APIs at competitive prices.

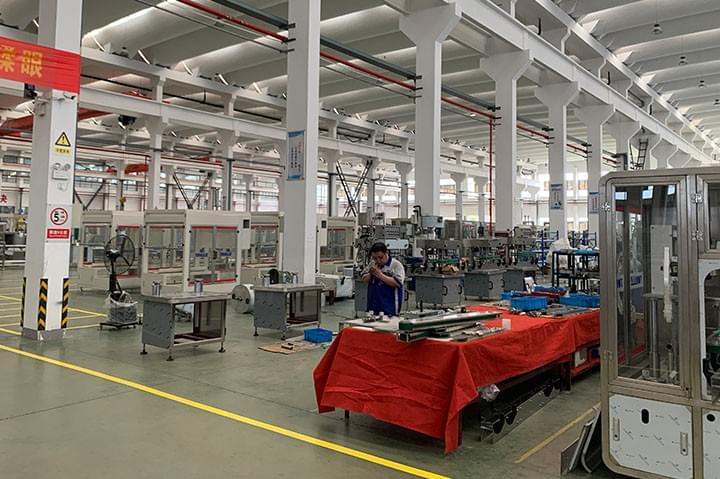

Our Team
Professional Technical Support and Excellent Service.
Based on our experienced engineering team, we produce top quality machines, packing materials and APIs and also help customers select the best quality suppliers.
Our company is a technology-driven company and focuses on producing high quality machinery. We employ 15 engineers on machinery design and technology improvement.
Each engineer has at least ten years' machining and packaging area experience. We are your extra technical consultant center.

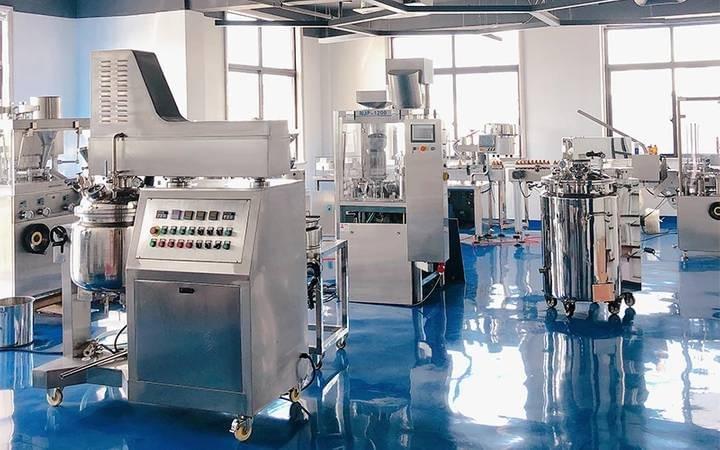

Quality Control
Strict Quality Control and Multiple Certificates.
Our company owns a quality control department to verify each product at different phases, from the procurement of parts to finished products. In order to offer clients the best quality products, we manufacture products in accordance with international standards, such as FDA, GMP and cGMP.
We are your best pharmaceutical production solution!
Main Market
Based in China and Serve for All Over the World.

North America
South America
Western Europe
Eastern Europe
Eastern Asia
Southeast Asia
Middle East
FAQ
What price terms you offer?
We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.
What payment terms you take?
TT, LC, other terms are also workable.
Our company
More than 15 years in pharmaceutical industry.
How can I visit your factory?
Yes, we can send our engineers to your place to guide the installation and train your workers if you need, but the buyer should bear our technician's round tickets, accomodation, food and subsidiary USD100/day.
Will you help with installation and stuff training?
Yes, we can send our engineers to your place to guide the installation and train your workers if you need, but the buyer should bear our technician's round tickets, accomodation, food and subsidiary USD100/day.
Our service
5 years free warranty
High customize design machine
Local service
Within 12 hours quick service response.
GMP compliance
Q1：What materials are suitable for spray drying?
A：Fluid materials that do not contain oil. It is recommended that the alcohol content should also be as low as possible.

Q2：How much alcohol content in spray drying needs to be equipped with explosion-proof devices?
A：5% or more.

Q3：If spray drying can use pneumatic instead of electric, what device is needed?
A：An air compressor is required, and the spray dryer originally needs an air compressor.

Q4：How is the diameter of spray drying machine chamber affected?
A：Material moisture content, fluidity, drying temperature.

Q5：What are the main factors affecting the price of spray drying machine?
A：1. The material can withstand temperature
2. Material flowability
3. Spray Drying Tower diameter
4. Dedusting function
5. Spray Dryer structure material
6. Heating Source

Q6：Can spray drying machine continue to be fed for several hours?
A：It can run for 24 hours, as long as the material is not sticky and does not block the atomizing head.

Q7：What is the relationship between the inlet air temperature of spray drying machine and the price?
A：Based on same product and same production capacity, The higher the inlet air temperature, the lower the equipment price.

Q8：What is the cause of some impurities in the spray-dried powder?
A：The material is impure or the drying tower and piping system is impure.

Q9：Can the spray dryer handle CaCl2 solution?
A：Yes.

Q10：Spray drying machine has an atomizing head and a spray gun. Is there only one to install? How to choose it?
A：The spray gun and the atomizing head are the same thing, one machine with one atomizer only.

Q11：Where does spray dryer usually collect powder? Is it possible to quickly sample without stopping the machine?
A：The machine is usually equipped with a sampling port, and the sampling port can be directly sampled without stopping the machine.

Q12：What does LPG use to adjust the inlet air temperature?
A：LPG is a heating source, we will equip an Heating device for controlling heating, and the temperature is controlled by PLC.

Q13：What device does LPG use to keep the inlet air temperature stable?
A：Fan and temperature controlling system

Q14：Why can't LPG dry oily liquids?
A：After the material is atomized, the oil will envelop the water, causing the water to fail to evaporate quickly, so oil-containing materials are not suitable for spray drying.

Q15：The difference between vacuum belt dryer and ordinary dryer.
A：Vacuum belt drying is continuous drying and has the function of crushing and granulating. Vacuum Belt dryer can run 24hours*7days without stop, it saves lots of energy and labor.

Q16：What are the main differences between herbal medicine extract spray drying equipment and ordinary spray drying equipment?
A：The main difference between them is the feeding method and the atomizing head. For materials with high viscosity, screw pumps are basically used, and a larger atomizing head is used.

Q17：What are the dust removal methods of centrifugal spray drying machine?
A：Mostly we are using Water curtain dust removal and cloth bag dust removal.

Q18：The centrifugal spray dryer Model LPG-50 needs to be used for the entire production line of milk powder. Is there any other machine needed?
A：1. Homogenizer (usually a high-pressure homogenizer)
2. Pasteurizer
3. Thickener (usually using falling film concentration)
4. Spray drying
5. Packaging equipment

Q19：In addition to electric heating and steam heating, is there any other heating method for centrifugal spray drying?
A：Electric heating, steam heating, natural gas heating.
Steam heating requires a boiler, if it is a large-capacity machine, it is recommended to use steam for heating

Q20：What materials are used for centrifugal spray drying and pressure spray drying?
A：Centrifugal spray is suitable for dilute materials, and pressure spray is suitable for viscous materials or large particles.

Q21：Is the herbal extract spray dryer and centrifugal spray dryer the same?
A：The appearance is similar, the former has more air sweeping devices and cooling devices than the latter.

Q22：The difference between pressure spray dryer and centrifugal spray dryer
materials
A：1. Homogeneous emulsified materials (oil-containing) can use pressure spray dryer, which requires higher output.
2. For oil-free materials, centrifugal spray dryers can be used, which requires lower output.

Q23：What is the difference between vacuum drying, hot air circulation drying, and microwave drying?
A：Vacuum drying: low temperature, low pressure, slow drying speed, material color and composition are not easy to change, suitable for fluids.
Hot air circulation drying: cheap and not easy to be explosion-proof.
Microwave vacuum drying: low temperature and low pressure, fast drying speed, suitable for solid drying.

Q24：Advantages and disadvantages of microwave dryers
A：Start heating from the inside, the drying speed is fast, but it is not suitable for drying materials with high sugar content (the materials will be saccharified at high temperature, and the effect is not good)

Q25：What are the heat sources of the hot air circulation drying oven? What are the heat sources recommended by CT-C-IV?
A：Steam, electricity, natural gas. It is recommended to use electricity.

Q26：What is the cold trap(condenser) of the freeze dryer? What is the role? Will freeze dryers have this thing?
A：The Condenser is when the front compartment of the freeze dryer heats up and starts to evaporate water vapor. A cold well is needed to absorb the water vapor in the rear compartment of the machine, otherwise the vacuum pump will be damaged if it is discharged with the pipeline.

Q27：What is the role of plugging and pressurization in the freeze dryer?
A：Used for automatic capping of vials.

Q28：What is the role of the compensation plate in the freeze dryer?
A：Keep the upper and lower temperatures of the items in each layer consistent.

Q29：Does the freeze dryer need special maintenance?
A：Monitor the vacuum degree, the amount of refrigerant, and the tightness of the pipeline at any time.

Q30：What is the normal Freeze-drying time for one batch?
A：Quick freezing for 4-8 hours. Lyophilize for 16-20 hours.

Q31：How does the freeze dryer defrost?
A：Fill the Condenser with hot water, and use spraying and soaking methods to melt away the ice and frost attached to the cold well.

Q32：What is the water replenishment amount of the freeze dryer?
A：The ability of condenser to capture water vapor.

Q33：Is the number of trays of the freeze dryer fixed?
A：It can be customized according to the requirements, the larger is less, the smaller is more.

Q34：What is the difference between a freeze dryer integrated machine and a separate machine?
A：The all-in-one machine is frozen and freeze-dried in one chamber. Recommended all-in-one machine for general pharmaceutical industry and small output.

Q35：How many vacuum pumps are there on a freeze dryer?
A：2 pcs.

Q36：What are the advantages of separating the condenser from the freeze-drying chamber in the freeze-drying machine?
A：Prevent the moisture on the condenser from returning to the product.

Q37：What material is the ply of the front compartment of the freeze dryer? What are the functions?
A：Laminate stainless steel for heat transfer.

Q38：How to store the dried things in the lyophilizer so as not to be affected by moisture?
A：Pack as soon as possible within 1 hour.

Q39：Factors affecting the quality of freeze dryer
A：1. Vacuum degree (determined by vacuum pump)
2. Freezing speed (determined by the compressor)
3. Whether it will leak (mechanical design)
4. Water catching capacity (cold well)

Q40：What is the difference between a machine with and without pre-freezing?
A：Generally speaking, the freeze-drying effect of the machine with pre-freezing is better, and the product will be more complete. In terms of price, the price of the machine without pre-freezing will be lower.

Q41：Is pre-freezing a step before drying?
A：Pre-freezing is a step before lyophilization.

Q42：What equipment does a lyophilizer include?
A：Refrigeration system, drying system, vacuum system, circulation system, cavity, board, control system and computer.

Q43：Is the shelf life of freeze-dried products related to the machine?
A：It has a small relationship with the machine, and is mainly related to the process and the way of preservation.

Q44：What is WIP cleaning system ?
A：Washing in place.

Q45：Can the finished product of Fluid Bed dryer be reprocessed directly on the capsule filling machine or tablet press?
A：According to the process. Most of the process, Yes.

Q46：FL, GFG, and FLP are all drying equipment, is there any difference between them?
A：FL is more used for granulation drying, GFG is only used for drying, FLP can be used for coating, granulation and pelletizing.

Q47：When the dryer is operating, will the outside machine also have a high temperature?
A：The outside machine will not be hot, but the heating section will be very hot.

Q48：How does the suspension dry into powder?
A：According to the actual material, the suspension is usually a chemical drug, which is basically dried from a fluidized bed.

Q49：Will the drying temperature of the fluidized bed also affect the price of the machine?
A：Basically it will not affect the price, and the heating source will affect the price.

Q50：What is the heat source of the fluidized bed?
A：Either steam heating or electric heating can be used.

Q51：Principle of pulsation (same as pulsation dust removal)
A：Blow back with compressed air. In the vacuum state of the box, compressed air is introduced to break the vacuum state and form air pressure.

Q52：What type of dryer is usually needed to make dried fruits and what are the characteristics?
A：Normal vacuum drying, hot air circulation drying, freeze dryer

Q53：What kind of dryer is suitable for instant coffee?
A：Vacuum belt dryers and freeze dryers, spray dryers, mainly depends on the final size and the desired effect.

Q54：To make fruit puree into fruit powder, can it be made with a centrifugal spray dryer?
A：No, you can use a pressure spray dryer, or a vacuum belt dryer if the temperature is required.

Q55：How long does it take to freeze-dry a batch of fruit juice to powder?
A：24-30 hours, depending on the sugar content, the higher the sugar content, the longer the consumption time.

Home

Phone

CONTACT US

Get More Information !

Vacuum Dryer

HWZ Series Micro Wave Vacuum Dryer

Usage & Features

Different kinds solid contained liquid. Shallot, carrot cabbage, green and red pepper flakes, caraway, celery, tomato, onion, garlic, ginger, champignon, taro,etc.

Features

1. The equipment adopts advanced PLC control with touch screen operation function

2. the production speed can be adjusted at will without adjusting any other parameters.

FZG-15 Vacuum Drying Machine

Usage & Principle

Vacuum drying machine for vegetable is divided into static and dynamic, Model YZG round vacuum drier and Model FZG square vacuum drier belongs to static drier.

Range of usage

It is suitable for drying heat sensitive raw materials which often decompose, polymerize or metamorphose under high temperature. It is widely used in the final of pharmaceutical, chemical, foodstuff and electronic industry.

Principle

To heat and dry raw material under the state of vacuum is called vacuum drying. It use vacuum to pump air and humidity out. Making the work-room on the vacuum state. The drying rate increases greatly and energy is saved.

Spray Dryer

LPG Series Centrifugal Spray Dryer

Usage & Features

Range of usage

Suitable for emulsion, suspend liquid, pastel thing, solution, etc. In the polymer and resin, Fuel, pigment, Pottery, glass, eliminate rust the pharmaceutical, kill the worms, Carbohydrate, dairy products, Detergent and surface activation, Fertilizer, organic compound, inorganic compound material.

Features

1.Rapid drying speed, which just takes 5-15 seconds.

2.Suitable for thermo-sensitive material and keep the origin state.

3.Simple processing and easy operation, which is suitable for continuous production.

4.The product has a good degree of uniformity, liquidity and dissolubility with high quality and purity.

5.Can adjust the product diameter, density and water content in some degree which is convenient to control and manage.

Hot Air Circulation Dryer

CTC Series Hot Air Circulation Dryer

Usage & Features

Range of usage

Features

1.The whole machine is in accordance with GMP standard.

2.Service temperature: steam heating 50-150℃; max 150℃; electrical heating 50-350℃.

Fluid Bed Dryer

FL Series Boilling spray Granulation Dryer

Usage & Features

Range of usage

1.Drugs granulation and coating.

2.Granulation: Tablet particles, granule particles, capsule particles.

3.Coating: particles, pill covers, color-prepared, slow-release, films, enteric coating

4.Food granulation and coating Granulated sugar, coffee, cacao powder, cream, juice powder, amino acids, sauce, puffed food.

5.Pesticide, paint pigment, dry granulation Powder, granules, block materials.

Features

1.To adopt antistatic filtering mediums, to ensure safe operation.

2.Caking agent atomizer adopts multi-fluid spray gun to maintain uniform spray particles and to increase the rate of qualified products greatly.

3.No dead-corner of equipment; it is easy and rapid of feeding or discharging materials and clean of washing to satisfy the GMP standard.

GFG Series High Efficiency Boiling Dryer

Usage & Features

Range of usage

1.Drugs granulation and coating.

2.Granulation: Tablet particles, granule particles, capsule particles.

3.Coating: particles, pill covers, color-prepared, slow-release, films, enteric coating

4.Food granulation and coating Granulated sugar, coffee, cacao powder, cream, juice powder, amino acids, sauce, puffed food.

5.Pesticide, paint pigment, dry granulation Powder, granules, block materials.

Features

1. Overturning discharge of the machine is convenient, quick and complete. Operated at sealed negative pressure and designed by GMP.

2. Inside the bed has installed a mixer, so that to avoid damp materials agglomerating and the channeling during drying.

3. The cloth-bag filter at the top is made of the special antistatic fibers to ensure the safety of the operation.

ZLG Series Vibrating Fluid Bed Dryer

Features

1. Bottom bed adopts stainless steel seamless tube for supporting; the structure of bed is stronger and makes the life of equipment longer.

2. Material is heated uniformly, heat exchanging is full and drying intensity is high. Energy can be saved about 30%.

3. Vibration source is vibrating motor. It features constant operation, convenient maintenance, low noise and long life.

4. Fluid state is stable; there is no phenomenon of gap or blowing out.

5. There is less damage to the surface of material. It can be used for drying material that is easy to broken. The work efficiency is not affected even if the granule of material is irregular.

Range of usage

2. Organics: oxalic acid, succinic acid, hydroquinone, p-nitrobenzoic acid, fumaric acid, resorcinol, catechol, calcium hypochlorite, sodium silicate, GDL, sodium gluconate, thiourea, sorbitol, dicyandiamide, iminodiacetonitrile, itaconic acid.

ABOUT US

Service Center All Over the World！

LTPM CHINA

A Pharma Machinery Division, For A Better Life.

Our company is recognized as a major pharmaceutical equipment manufacturer and a distributor of packaging materials and pharmaceutical chemicals.

Our company is founded in Rui'an, China, with 18 years' (Opened on 1996 year) experience in pharmaceutical industry.

This allows us to expand our business in a well-planned manner.

We now offer a comprehensive whole production line of quality pharmaceutical machines,packing materials and APIs at competitive prices.

Our Team

Professional Technical Support and Excellent Service.

Based on our experienced engineering team, we produce top quality machines, packing materials and APIs and also help customers select the best quality suppliers.

Our company is a technology-driven company and focuses on producing high quality machinery. We employ 15 engineers on machinery design and technology improvement.
